Data Sheets

ATEX LED MAX

KEY FEATURES:

  • ATEX approved LED
  • Aluminium frame
  • Steel brackets
  • Functional in hazard zones 2 to 22
  • IP66 & IK07 resistance
  • Can be installed on a wall or ceiling as either a hood or projector



The ATEX LED MAX luminaire has three types of optics to choose from:
  1. Extensive symmetrical optics to cover a wide area.
  2. Intensive symmetrical allows light to be concentrate below luminaire.
  3. Extensive asymmetrical ideal on walls to light  the area in front of the wall.

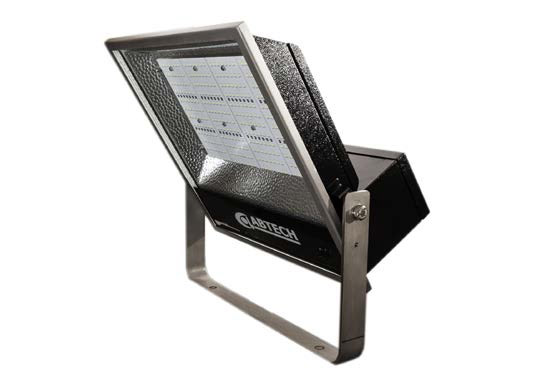

Gamma Floodlight



The Gamma is a high output LED floodlight is designed for use in Zone 1 & 21 hazardous areas. The compact design and flexible mounting allows the Gamma to also be used as a lowbay.

Key Features:

• High performance LED module providing uniform and crisp white light.
• Stainless steel construction to ensure extended life in harsh conditions •  5-year complete system warranty






Standard Specifications:

Luminaire Type  Zone 1 & 21 LED Floodlight/Lowbay
Ingress Protection  IP66/67 to EN60529
Ambient Temperature  -30° C to +55° C
Material  Stainless steel 316 grade housing, toughened glass window, silicone gaskets and stainless steel fixings
Lamp Types  Light emitting diode, pure white (5700K)
Colour Rendering Index  > 80
LED Life  50,000 hours L70 @ 50° C
Cable Entry  2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug
Terminals  Looping terminal block for up to 4mm2 conductors
Control Gear  Electronic driver: EN60601-1 (CE), EN61204-3 (EMC), EN61000-4-5 (surge protection class 3)
Orientation  0°  to 120°
Mounting  Via saddle bracket
Supply  110 to 254V 50/60Hz ac
Certification
Area Classification  Zone  1 & 21, Gas and Dust
Type of Protection  Ex e (Increased Safety), Ex is(Intrinsically Safe), Ex op (Optical Radiation) Ex q (Quartz Filled) & Ex tb (Dust)
Apparatus Coding*  Ex nA IIC T# Gc, Ex tb IIIC T#° C Db and Ex tc IIIC T#° C Dc
Certificate Number  ATEX 15ATEX3045 (Zone 2 & 22), 15ATEX4042 (Zone 21) / IECEx CML15.0022

















Product
Reference
Colour
Temperature (K)
Lumen
Output (lm)

Power
(W)
Temp Class and Surface Temp
Tamb 55° C      Tamb 40° C
Weight (kg)


LX1GAM4LB57  5,700 10,870 72 T3  T100° C  T4  T85° C  13






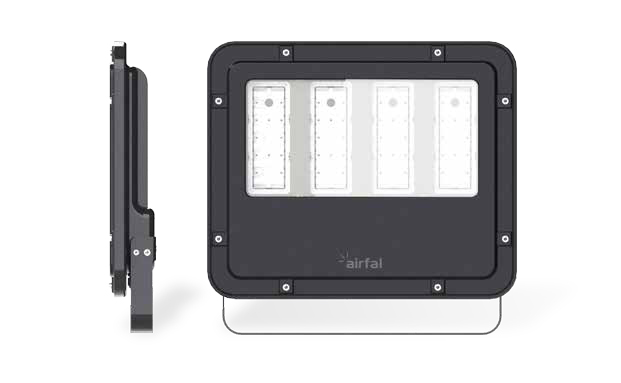

Gamma Floodlight


The Gamma is a high output LED floodlight is designed for use in Zone 2, 21 & 22 hazardous areas.

Key Features:

• High performance LED module providing uniform and crisp white light.

• Stainless steel construction to ensure extended life in harsh conditions

• Control gear with thermal cut-off protection to maintain LED life

• 5 year complete system warranty


Standard Specifications:

Luminaire Type  Zone 2 LED Floodlight
Ingress Protection  IP66/67 to EN60529
Ambient Temperature  -50° C to +55° C
Material  Stainless steel 316 grade housing, toughened glass window, silicone gaskets and stainless steel fixings
Lamp Types  Light emitting diode, pure white (5700K)
Colour Rendering Index  > 80
LED Life  50,000 hours L70 @ 50° C
Cable Entry  2 x M20 clearance holes. Supplied with 1 x Ex plug and 1 x transit plug
Terminals  Looping terminal block for up to 4mm2 conductors
Control Gear  Electronic driver with built in thermal cut off to extend operational life
Orientation  0°  to 120°
Mounting  Via saddle bracket
Supply  90 to 305V 50/60Hz ac
Certification
Area Classification  Zone 2, 21 & 22, Gas and Dust
Type of Protection  Ex nA (non-sparking), Ex tb & Ex tc (Dust)
Apparatus Coding*  Ex nA IIC T# Gc, Ex tb IIIC T#° C Db and Ex tc IIIC T#° C Dc
Certificate Number  ATEX 15ATEX3045 (Zone 2 & 22), 15ATEX4042 (Zone 21) / IECEx CML15.0022

















Product
Reference
Colour
Temperature (K)
Lumen
Output (lm)

Power
(W)
Temp Class and Surface Temp
Tamb 55° C      Tamb 40° C
Weight (kg)


LX2GAM4LB57  5,700 13,675 9600 T3  T100° C  T4  T85° C  13

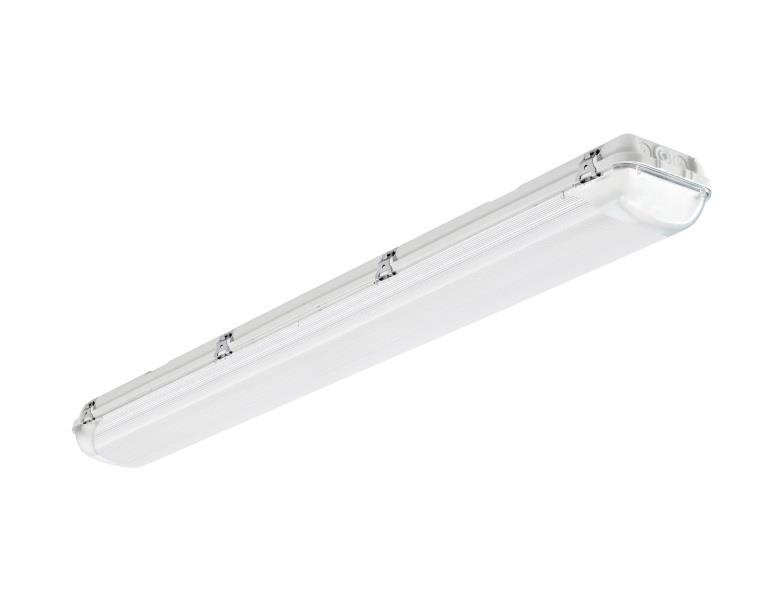

 Hazlite

PRIMA LED Ex Series


Key Features:
  • Explosion proof environment category group II, category 3 (Zone 2,22)
  • 5 year warranty & 50,000 hour lifespan
  • Polycarbonate body for high impact resistance.
  • Weatherproof
  • Light fitting protection IP66


Mounting Accesories:










  1. Directly to a celing or a wall with the use of screws and stainless brackets
  2. Suspension with the us of stainless hooks
  3. Attachment with the use of side hangars to the wall

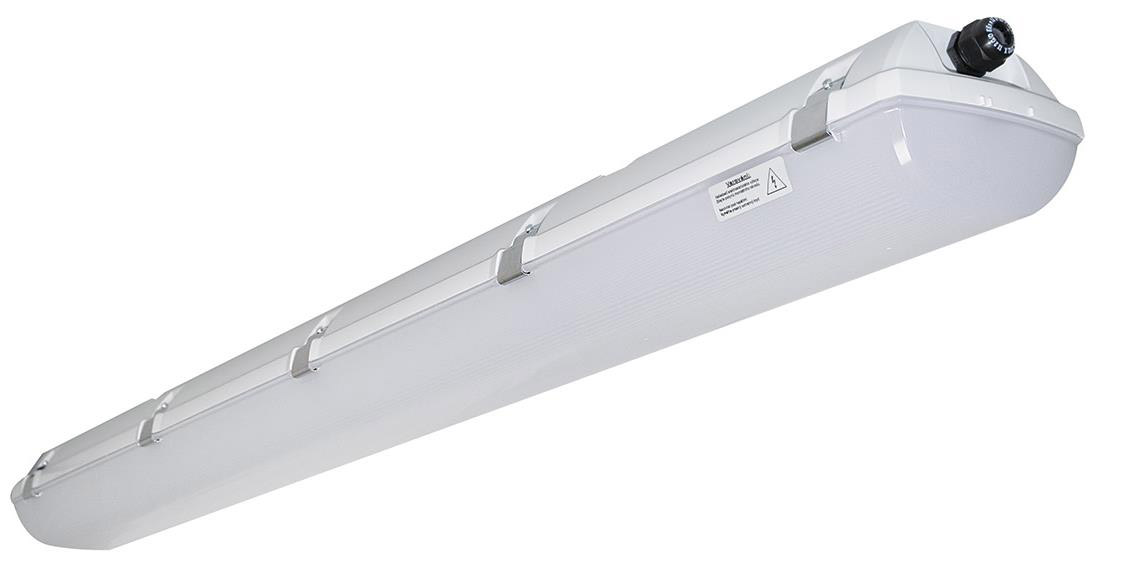

Explosion-proof Lighting G2X

Key Features:
  • IP66 & IK08 for us in hazard zones 2 & 22
  • Can be mounted on either wall or ceiling
  • Emergency Kit models available
  • For use indoors and in sheltered areas
  • LED lifetime of 65000 hours
  • Housed in compressed glass fibre reinforced polyester in graphite black or gray.








MODEL Dimensions (mm)
L x D
with Emergency Kit
(Optional)
 G2X LED 600 PC  INOX 665 x 390 N/A
 G2X LED 1200 PC INOX 1282 x 800 G2X LED EB 1200 PC INOX
 G2X LED 1500 PC INOX 1578 x 1100 G2X LED EB 1500 PC INOX










 Components
Material
 Housing SMC + 15%GF
 Gasket Polyurethane
 Gear Tray Holder PA 6.6
 Gear Tray Steel Plate
 LED Stripes The Main. PO
 Diffuser PC
 Driver Electronic
 Clsoing clips Stainless Steel
 Fixng Springs Stainless Steel


Photometric Data G2X LED 600 PC INOX G2X LED 1200 PC INOX  G2X LED 1500 PC INOX
 Consumption 22W 40W 45W
 Efficiency 100lm/W 110lm/W 116lm/W
 Luminous Flex 2200lm 4400lm 5200lm
 Voltage  230V 230v 230V
 Colour Temperature 4000K 4000K 4000K
 Emergency Kit N/A 60' or 180' 180'
